Ha

Hb

Hc

Hd

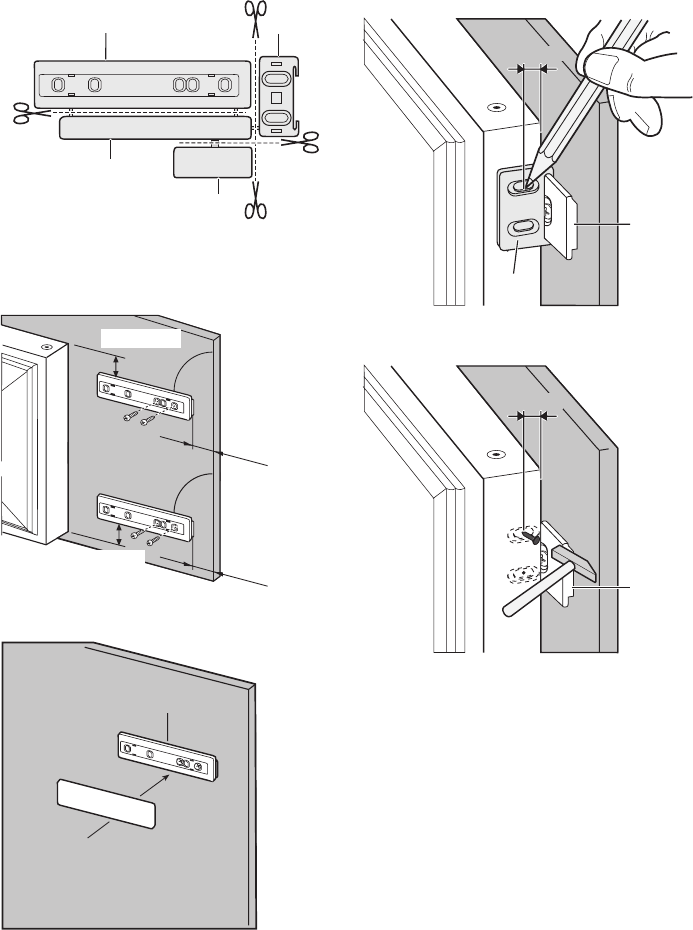

7. Install the part (Ha) on the inner side of

the kitchen furniture.

ca. 50 mm

ca. 50 mm

21 mm

90°

90°

21 mm

8. Push the part (Hc) on the part (Ha).

Ha

Hc

9. Open the appliance door and the kitchen

furniture door at an angle of 90°.

Insert the small square (Hb) into guide

(Ha).

Put together the appliance door and the

furniture door and mark the holes.

Ha

Hb

8 mm

10. Remove the brackets. Install the nail (K)

8 mm far from the outer edge of the door.

Ha

K

8 mm

11. Place the small square on the guide

again and fix it with the screws supplied.

Align the kitchen furniture door and the

appliance door by adjusting the part Hb.

progress 13
